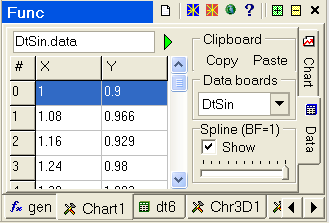

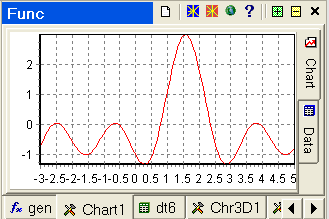

| Chart.tbd
v2.1 |
Simple charting tool.
Methods
|
int SetData(dt) |
SetData sets the X/Y vectors of the chart. SetData(NULL) will
clear the series |
|
int Add(X,Y) |
Add new point to the chart series. |
|
int SetSource(src) |
SetData sets the name of the source (data-board) for the X/Y
vectors of the chart. |
|
int UpdateChr() |
Update chart series using the last set source. |
|
matrix dbl GetData() |
Returns the point(X/Y) values in the chart series. |
|
double Spline(X) |
Return interpolated (cubic spline) Y value of X coord.; |
|

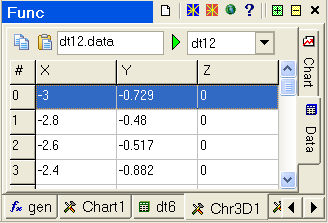

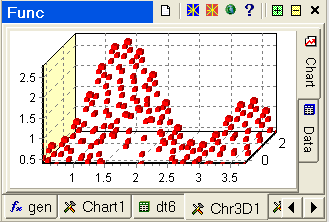

| Chr3D.tbd
v2.1 |
3D charting tool (irregular X/Z grid).
Methods
|
int SetData(dt) |
SetData sets the X/Y/Z vectors of the chart. SetData(NULL) will
clear the series |
|
int Add(X,Y,Z) |
Add new point to the chart series. |
|
int SetSource(src) |
SetData sets the name of the source (data-board) for the X/Y/Z
vectors of the chart. |
|
int UpdateChr() |
Update chart series using the last set source. |
|
matrix dbl GetData() |
Returns the point(X/Y/Z) values in the chart series. |
|

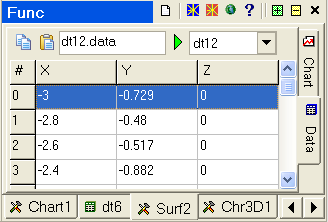

| Surf.tbd
v1.1 |
Surface charting tool (regular X/Z grid).
Methods
|
int SetData(dt) |
SetData sets the X/Y/Z vectors of the chart. SetData(NULL) will
clear the series |
|
int Add(X,Y,Z) |
Add new point to the chart series. |
|
int SetSource(src) |
SetData sets the name of the source (data-board) for the X/Y/Z
vectors of the chart. |
|
int UpdateChr() |
Update chart series using the last set source. |
|
matrix dbl GetData() |
Returns the point(X/Y/Z) values in the chart series. |
|
double Spline(X,Z) |
Return interpolated (bi-cubic spline) Y value of X,Z coord.; |
|

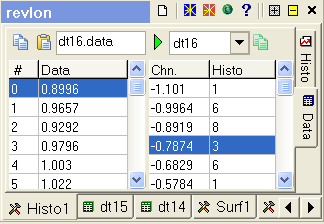

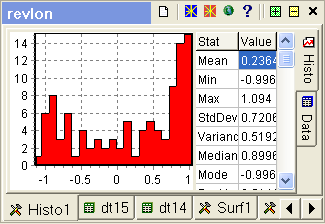

| Histo.tbd
v2.0 |
Simple histogram tool with stats.
Methods
|
int SetData(dt) |
SetData sets the values of the data buffer. SetData(NULL) will
clear the series |
|
int Add(dt) |
Add new value to the data buffer. |
|
int SetSource(src) |
SetData sets an expression which results to a vector with the
values |
|
int UpdateHst() |
Update chart series using the last set source. |
|
void SwitchStat(switch) |
Switches ON / OFF - the statistics panel and calculations. |
|
str Stats(stat) |
Returns list of all stats or the value of particular stat-item. |
|
matrix dbl GetHisto() |
Returns the histogram (Bin/Count) from the chart. |
|
vector dbl GetData() |
Returns the values in the data buffer. |
|
